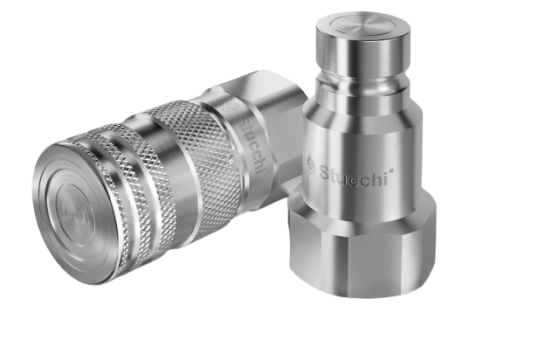

ACOPLE CARA PLANA
ACOPLE CARA PLANA
ISO 16028
Cara Plana
Acero Carbono
NPT (Consulte disponibilidad en BSP y MB)
Hasta 4350 psi
-20°C a 100°C
Norma:
Valvula:
Material:
Hilos:
Presion:
Rango de T°:

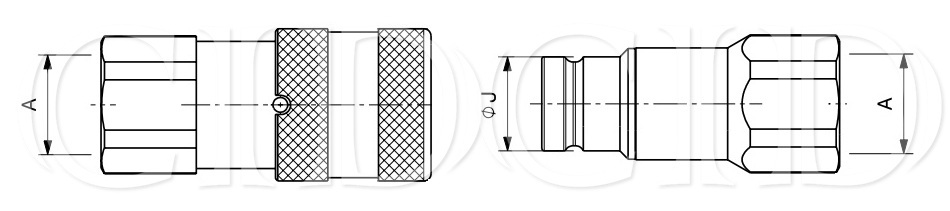

| Codigo | Dash | Cuerpo | Hilo (A) |
Diametro (J) |
Presion de Trabajo |
Caudal |
| ARH.CPSA.0404 | 04 | 1/4" | 1/4" | 16.1 mm | 6090 psi | 12 Lt/Min |
| ARH.CPSA.0606 | 06 | 3/8" | 3/8" | 19.7 mm | 5075 psi | 23 Lt/Min |
| ARH.CPSA.0608 | 06 | 3/8" | 1/2" | 19.7 mm | 5075 psi | 23 Lt/Min |
| ARH.CPSA.0808 | 08 | 1/2" | 1/2" | 24.5 mm | 4785 psi | 45 Lt/Min |
| ARH.CPSA.0812 | 08 | 1/2" | 3/4" | 24.5 mm | 4785 psi | 45 Lt/Min |
| ARH.CPSA.1012 | 10 | 5/8" | 3/4" | 27.0 mm | 4785 psi | 74 Lt/Min |
| ARH.CPSA.1216 | 12 | 3/4" | 1" | 30.0 mm | 4875 psi | 100 Lt/Min |
| ARH.CPSA.1616 | 16 | 1" | 1" | 36.0 mm | 4350 psi | 189 Lt/Min |
| ARH.CPSA.2020 | 20 | 1.1/4 | 1.1/4" | 44.0 mm | 4350 psi | 225 Lt/Min |
| ARH.CPSA.2424 | 24 | 1.1/2" | 1.1/2" | 57.0mm | 3915 psi | 288 Lt/Min |
