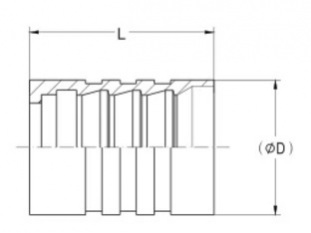

| Codigo | Medida | Largo (L) | Diametro Exterior (D) |
N. Parte |
| FH.402.08 | 1/2" | 34mm | 30mm | 00402-08 |
| FH.402.10 | 5/8" | 39mm | 33mm | 00402-10 |
| FH.402.12 | 3/4" | 40mm | 38mm | 00402-12 |
| FH.402.16 | 1" | 51mm | 46mm | 00402-16 |
| FH.402.20 | 1 1/4" | 60mm | 55mm | 00402-20 |
| FH.402.24 | 1 1/2" | 70mm | 63mm | 00402-24 |
| FH.402.32 | 2" | 72mm | 77mm | 00402-32 |
Acero Carbono Zincado
SAE
R9 / R12 / 4SP / 4SH (NO INTERLOCK)
Ferrula para pelado exterior de manguera
No requiere pelado interior
Material:
Norma:
Compatibilidad:

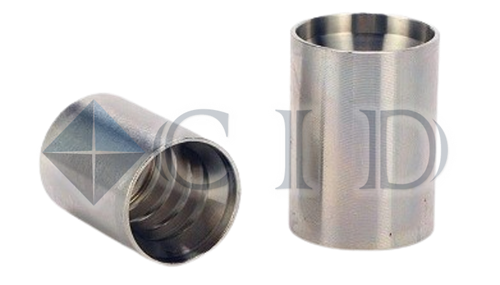

FERRULAS R9
ferrulaS R9
| Codigo | Medida | Largo (L) | Diametro Exterior (D) |
N. Parte |
| FH.400.08 | 1/2" | 41mm | 29mm | 00400-08 |
| FH.400.10 | 5/8" | 43mm | 32.5mm | 00400-10 |
| FH.400.12 | 3/4" | 51mm | 37.2mm | 00400-12 |
| FH.400.16 | 1" | 62mm | 46.2mm | 00400-16 |
| FH.400.20 | 1 1/4" | 68mm | 57mm | 00400-20 |
| FH.400.24 | 1 1/2" | 75mm | 65mm | 00400-24 |
| FH.400.32 | 2" | 79mm | 79mm | 00400-32 |

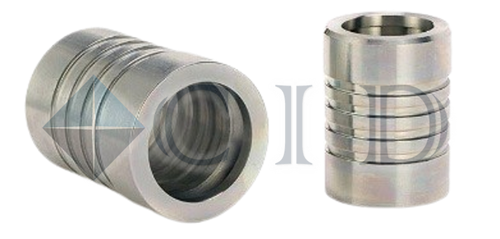

Ferrula Corta (402)
