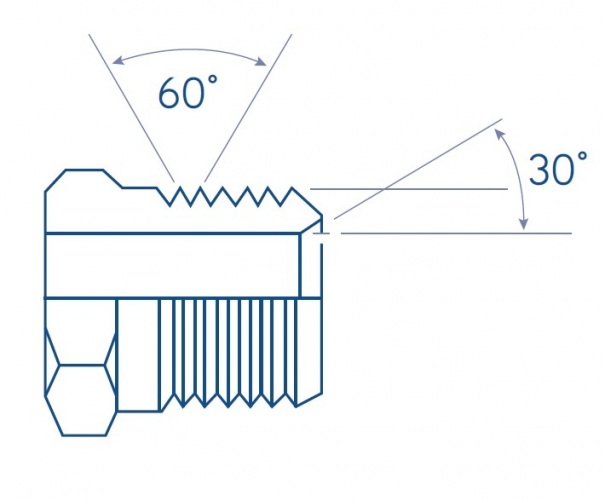

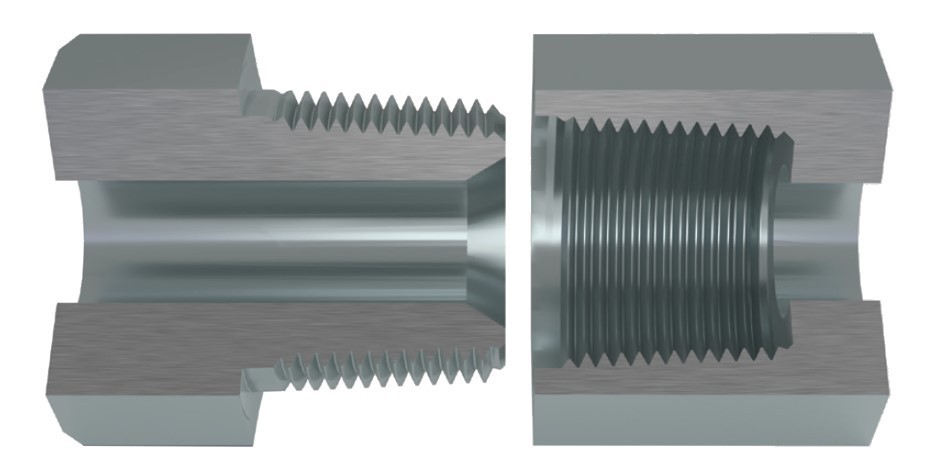

NPT
NPT
(MP) MACHO NPT
 |
Codigo | Medida | Espiga | Hilo (T) |
| CH.MP.0402 | 04-02 | 1/4 | 1/8-27 | |
| CH.MP.0404 | 04-04 | 1/4 | 1/4-18 | |
| CH.MP.0406 | 04-06 | 1/4 | 3/8-18 | |
| CH.MP.0604 | 06-04 | 3/8 | 1/4-18 | |
| CH.MP.0606 | 06-06 | 3/8 | 3/8-18 | |
| CH.MP.0608 | 06-08 | 3/8 | 1/2-14 | |
| CH.MP.0804 | 08-04 | 1/2 | 1/4-18 | |
| CH.MP.0806 | 08-06 | 1/2 | 3/8-18 | |
| CH.MP.0808 | 08-08 | 1/2 | 1/2-14 | |
| CH.MP.0812 | 08-12 | 1/2 | 3/4-14 | |
| CH.MP.1208 | 12-08 | 3/4 | 1/2-14 | |
| CH.MP.1212 | 12-12 | 3/4 | 3/4-14 | |
| CH.MP.1216 | 12-16 | 3/4 | 1-11.1/2 | |
| CH.MP.1616 | 16-16 | 1 | 1-11.1/2 | |
| CH.MP.2020 | 20-20 | 1.1/4 | 1.1/4-11.1/2 | |
| CH.MP.2424 | 24-24 | 1.1/2 | 1.1/4-11.1/2 | |
| CH.MP.3232 | 32-32 | 2 | 2-11.1/2 |
(MPX) MACHO NPT GIRATORIO
 |
Codigo | Medida | Espiga | Hilo (T) |
| CH.MPX.0404 | 04-04 | 1/4 | 1/4-18 | |
| CH.MPX.0606 | 06-06 | 3/8 | 3/8-18 | |
| CH.MPX.0808 | 08-08 | 1/2 | 1/2-14 | |
| CH.MPX.1212 | 12-12 | 3/4 | 3/4-14 | |
| CH.MPX.1616 | 16-16 | 1 | 1-11.1/2 |
(MPX 90°) MACHO NPT GIRATORIO 90°
 |
Codigo | Medida | Espiga | Hilo (T) |
| CH.MPX90.0404 | 04-04 | 1/4 | 1/4-18 | |
| CH.MPX90.0606 | 06-06 | 3/8 | 3/8-18 | |
| CH.MPX90.0808 | 08-08 | 1/2 | 1/2-14 | |
| CH.MPX90.1212 | 12-12 | 3/4 | 3/4-14 | |
| CH.MPX90.1616 | 16-16 | 1 | 1-11.1/2 |
(FPX) HEMBRA NPT
 |
Codigo | Medida | Espiga | Hilo (T) |
| CH.FPX.0402 | 04-02 | 1/4 | 1/8-27 | |
| CH.FPX.0404 | 04-04 | 1/4 | 1/4-18 | |
| CH.FPX.0406 | 04-06 | 1/4 | 3/8-18 | |
| CH.FPX.0606 | 06-06 | 3/8 | 3/8-18 | |
| CH.FPX.0808 | 08-08 | 1/2 | 1/2-14 |
