Interior |
Exterior |
Trabajo |
Ruptura |
Curvatura |
|||||
| Codigo | Pulgada | Milimetros | Milimetros | PSI | BAR | PSI | BAR | Milimetros | KG/MTS |
| MH.R5.04 | 3/16" | 4.76 | 13.2 | 3,002 | 206.98 | 12,000 | 827 | 75 | 0.21 |
| MH.R5.05 | 1/4" | 6.35 | 15 | 3,002 | 206.98 | 12,000 | 827 | 85 | 0.27 |
| MH.R5.06 | 5/16" | 7.94 | 17 | 2,250 | 155.13 | 9,000 | 621 | 100 | 0.34 |
| MH.R5.08 | 13/32" | 10.32 | 19.5 | 2,000 | 137.9 | 8,000 | 552 | 115 | 0.39 |
| MH.R5.10 | 1/2" | 12.7 | 23.5 | 1,750 | 120.66 | 7,000 | 483 | 140 | 0.53 |
| MH.R5.12 | 5/8" | 16.88 | 27.5 | 1,500 | 103.42 | 6,000 | 414 | 165 | 0.65 |
| MH.R5.16 | 7/8" | 22.23 | 31.5 | 800 | 55.16 | 3,200 | 221 | 185 | 0.64 |
| MH.R5.20 | 1.1/8" | 28.58 | 38 | 630 | 43.44 | 2,520 | 174 | 230 | 0.91 |
| MH.R5.24 | 1.3/8" | 34.93 | 44.5 | 500 | 34.47 | 2,000 | 138 | 265 | 1 |
| MH.R5.32 | 1.13/16" | 46.04 | 56.4 | 350 | 24.13 | 1,400 | 97 | 335 | 1.48 |
| MH.R5.40 | 2.3/8" | 60.33 | 73 | 350 | 24.13 | 1,400 | 97 | 610 | 2.96 |
Caucho sintetico resistente al aceite
1 Malla textil y 1 malla acero trenzada
1 malla textil trenzada
-40°c a 135°c
Fluidos hidráulicos y aceites a base de agua y petroleo
Tubo Interno:
Refuerzo:
Cubierta:
Rango de T°:
Aplicacion:

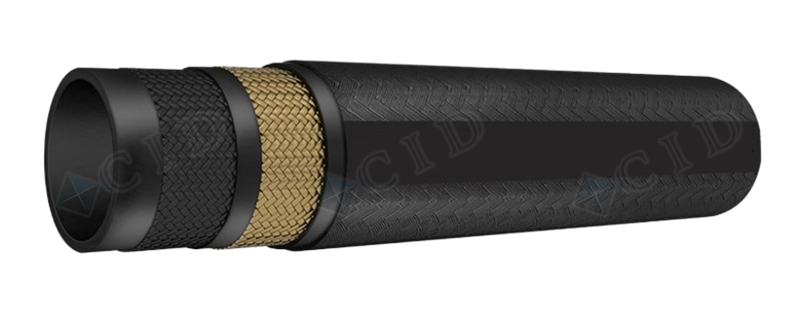

SAE 100 R5
SAE 100 R5
